Laser
Ultrafast laser system
The laser is a commercial titanium-sapphire system from Coherent Inc. It consists of:
- Micra, master oscillator
- Legend Elite Duo, multipass+single pass amplifier

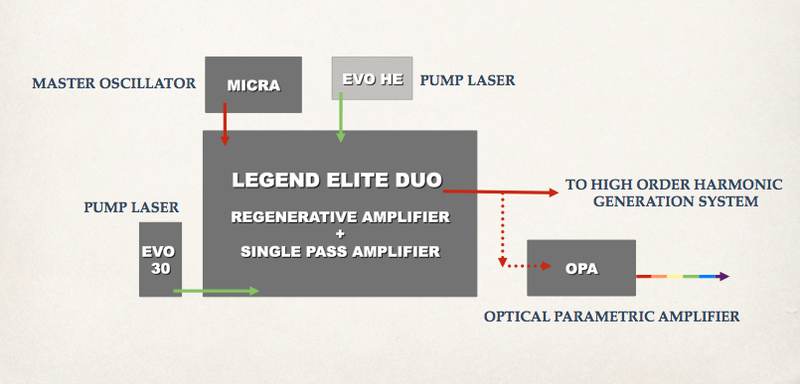

Laser sketch:
![Laser_sketch](/media/images/Laser_sketch.width-800.png)
Fundamental wavelength 800 nm
pulses time duration 35 fs
repetition rate 5 kHz
3 mJ per pulse

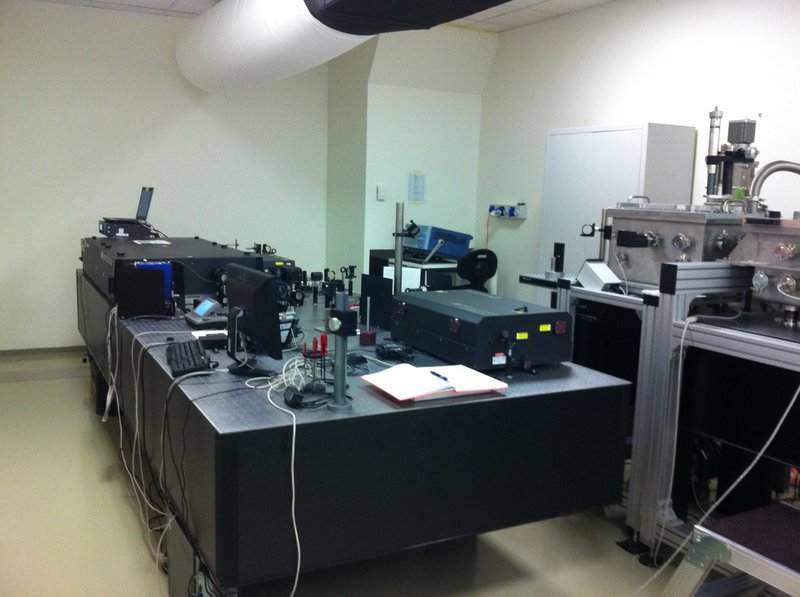

The system is equipped with an OPA (Optical Parametric Amplifier), OPerA from Coherent Inc., that generates light pulses in the spectral range (240 nm – 2600 nm) with more than 5 microJ/pulse.
![IMG_4316](/media/images/IMG_4316.width-800.jpg)
This laser is used to generate soft X rays pulses (HHG)
